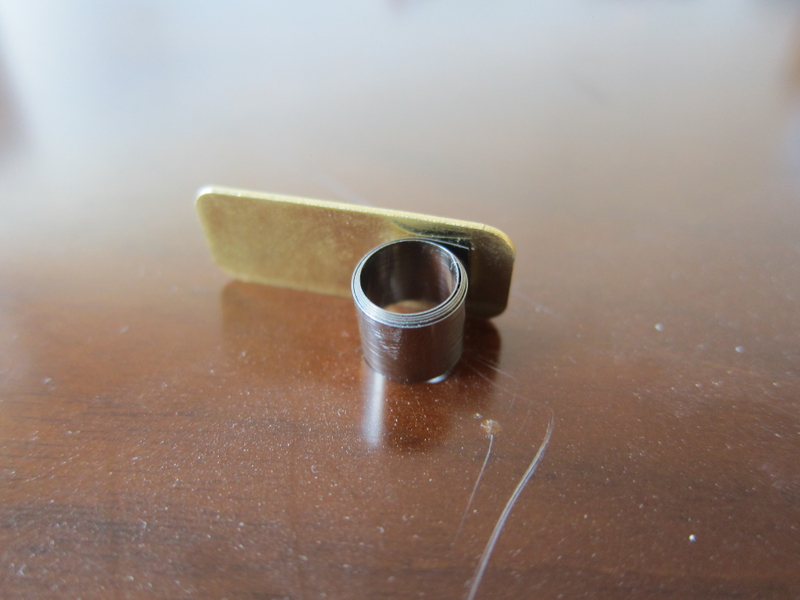

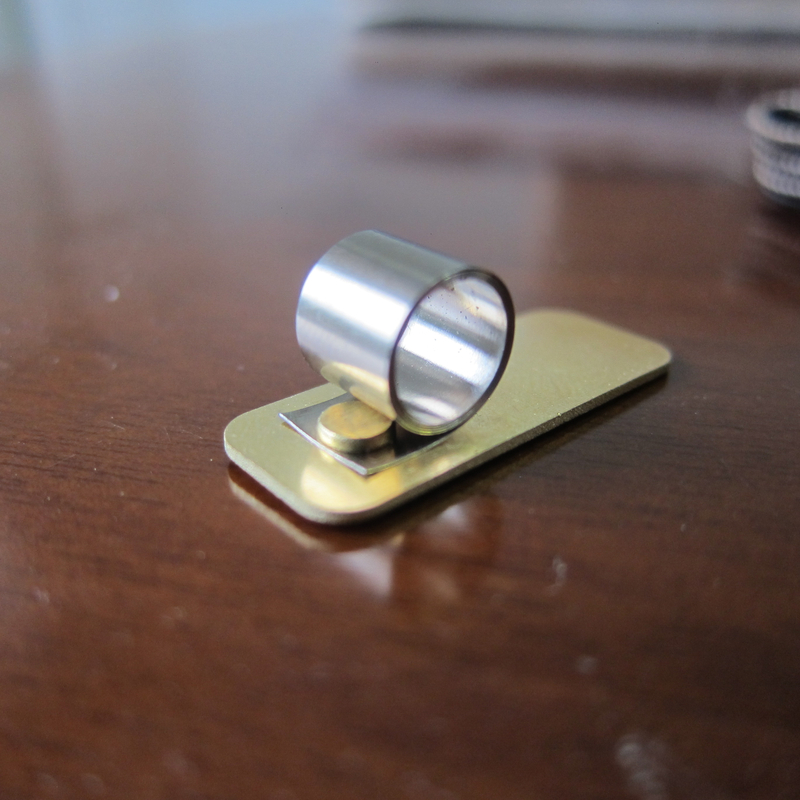

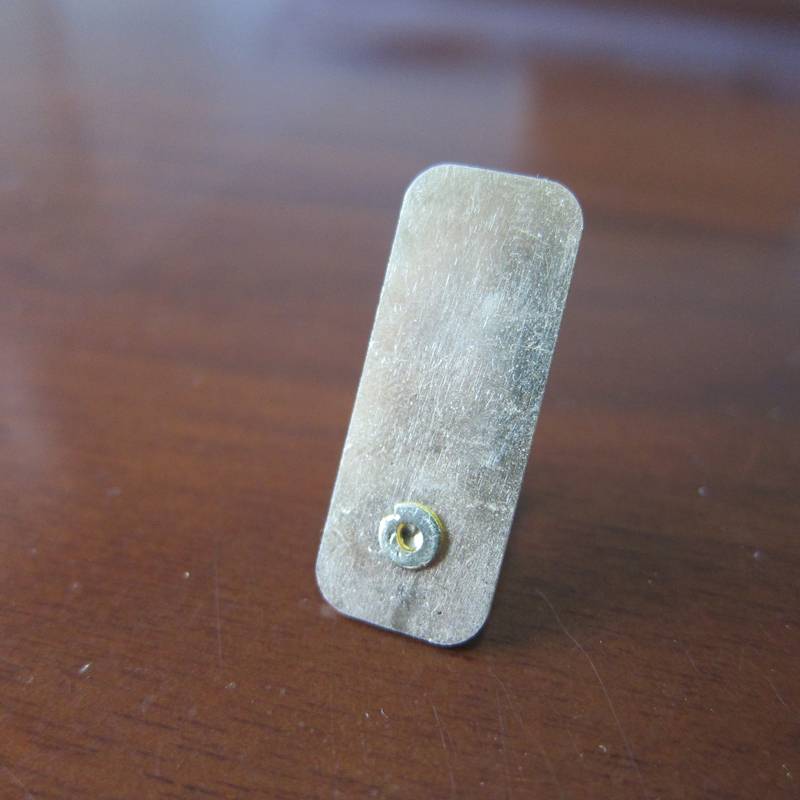

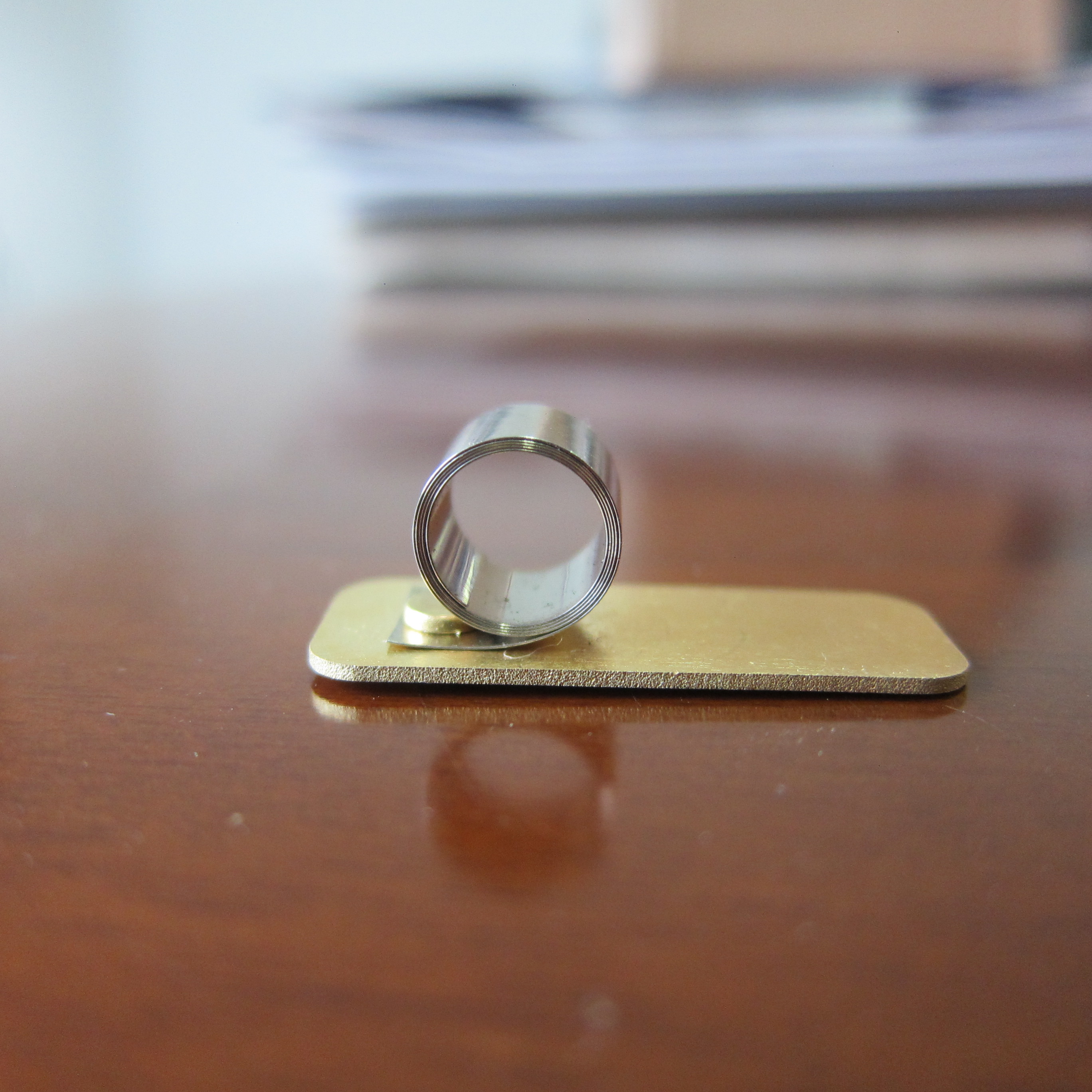

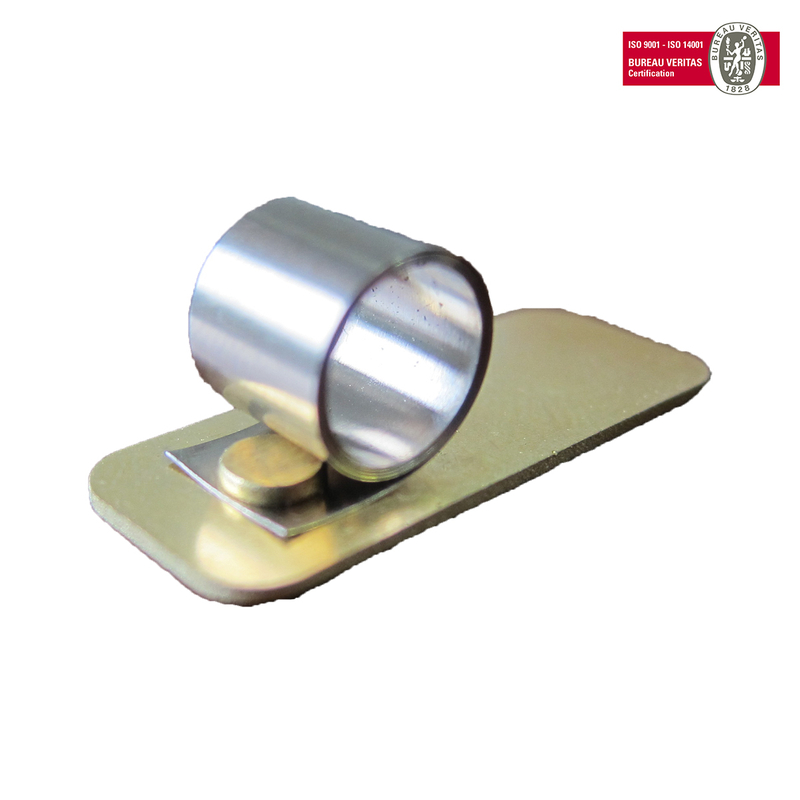

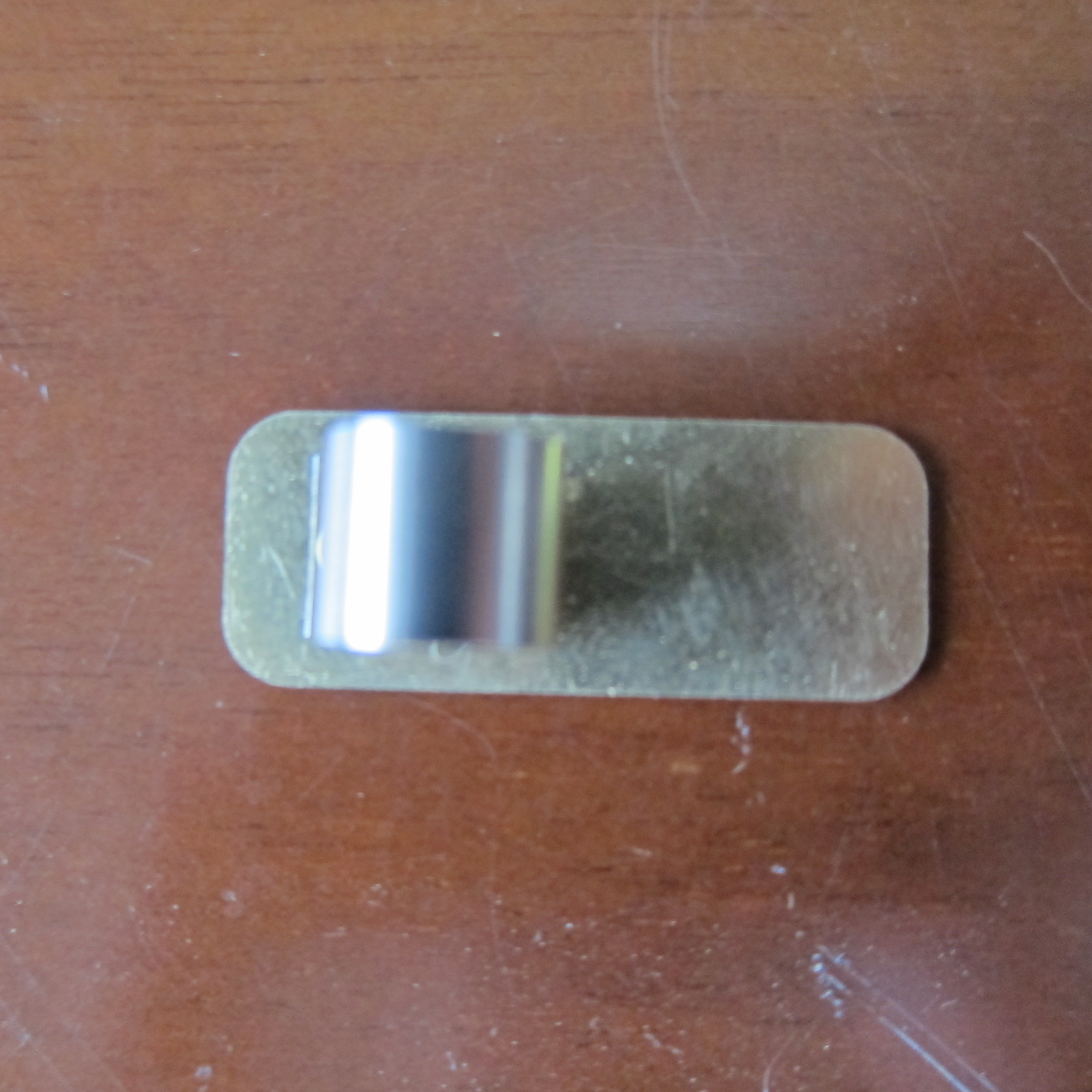

XHX-TS18 Constant Force Spring Loaded Brass Motor Carbon Brush Holder

Model NO.
XHX-TS18
Material
Brass
Type
Carbon Brush
Thickness
0.8mm
Length
30mm
Width
12mm
Height
11mm
Weight
3.5g
Spring Thickness
0.13mm
Spring Width
8mm
Spring Length
140mm
Spring ID
8.3mm
Spring Od
9.6mm
Loading
5n
Transport Package
Plastic Bag, Carton
Specification
38*12*18mm
Trademark
null
Origin
China
HS Code
73202090
Production Capacity
20 Million PCS/Year

Availability:

Quantity:



Inquire Add to Basket

Model:
XHX-TS18
Brand:
SZMRK
Code:
XHX-TS18

Product Description

Basic Info.

Model NO.

XHX-TS18

Material

Brass

Type

Carbon Brush

Thickness

0.8mm

Length

30mm

Width

12mm

Height

11mm

Weight

3.5g

Spring Thickness

0.13mm

Spring Width

8mm

Spring Length

140mm

Spring ID

8.3mm

Spring Od

9.6mm

Loading

5n

Transport Package

Plastic Bag, Carton

Specification

38*12*18mm

Trademark

null

Origin

China

HS Code

73202090

Production Capacity

20 Million PCS/Year

Product Description

Basic Info Form

Material	Thickness	Length	Width	Height	Weight	Spring Thickness	Spring Width	Spring Length	Spring ID	Spring OD	Loading
Brass	0.8mm	30mm	12mm	11mm	3.5g	0.13mm	8mm	140mm	8.3mm	9.6mm	5N
